Product Overview

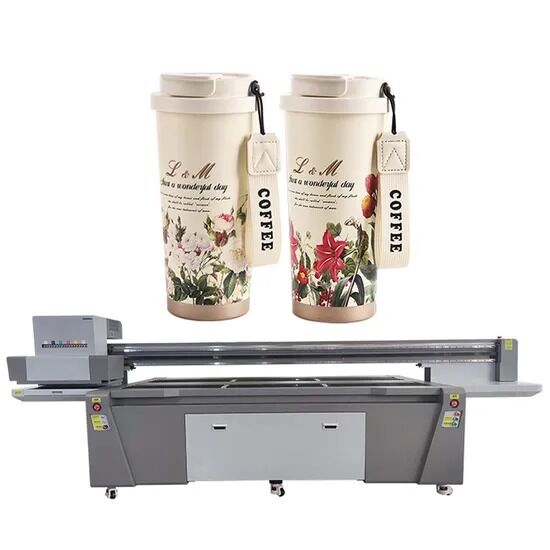

High-performance UV printer designed for cylinder inkjet taper stickers with digital screen printing capabilities at competitive factory pricing.
Key Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents blockage from ink curing
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Dimensions |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers with ISO certification and strict quality control. We support OEM and ODM services with over 10 years of UV printer manufacturing experience and positive client feedback worldwide. Our products are exported to France, Germany, Vietnam, India and other countries with CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables printing on virtually any media by creating high-quality graphics on hard or soft materials like acrylic boards or backlit films, and can serve as a primer for non-white materials. Varnish enhances picture brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, and more. UV printing eliminates coating requirements, prevents fading and blistering, and significantly reduces working hours for rigid identification boards, hard cardboard, corrugated boxes, glass, tiles, wood, and furniture applications.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training until full mastery. We offer international technical assistance with on-site testing and repair services when needed.
Q5: Regarding printer maintenance
We recommend daily ink pressing when turning on the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
We are a factory manufacturer, enabling us to provide competitively priced printers with high-quality services.
